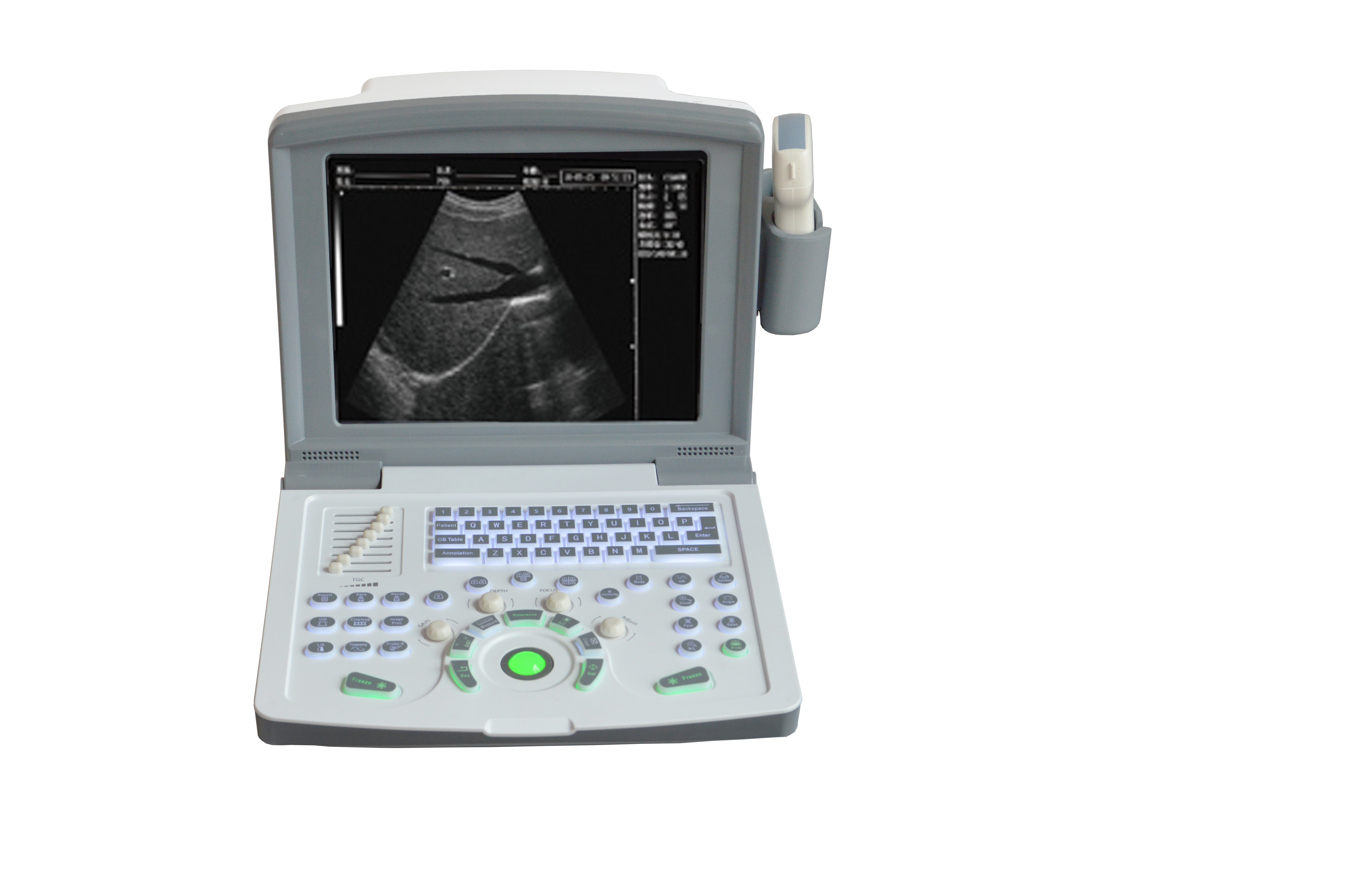

RH-300A Portable

Display modes: B type, B/B type, 4 B type, B+M type, M type.

Scope of application : Mainly suitable for examination of abdomen, obstetrics and gynecology, heart, superficial organs and other organs.

Imaging technology: fully digital beamformer, continuous dynamic focusing and continuously variable aperture, 32 A/D sampling channels.

Display magnification: six modes: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;

When ×1.8 or ×2.0, the display can be deeply enhanced.

Local magnification: Real-time local magnification by 2 times.

Display depth: convex array up to 240 mm , visible and adjustable;

Focusing : Dynamic digital electronic focusing point by point.

Pre- processing : variable aperture , dynamic tracking, dynamic digital filtering, etc.

Post -processing : 8 types of γ correction, row correlation, frame correlation, point-line correlation, linear interpolation, digital space-time filtering, digital edge enhancement, 16 types of pseudo-color processing, etc.

Measurement : distance, circumference, area, volume, ellipsometric measurement, heart rate, gestational age ( BPD, GS, CRL, FL, AC) and expected birth weight, etc.

Puncture guidance: B-mode images have the function of displaying the puncture guide line.

Gain Control: 8-stage TGC and total gain adjustable separately.

Image polarity: left /right flip, black/white flip, up/down flip.

Movie storage: 256 frames continuous loop storage during real-time display .

Image playback: can be played back continuously or viewed frame by frame.

Permanent storage: 128 frames can be selected for storage.

Standard configuration :

One host; ;

One 3.5MHz convex array probe.
