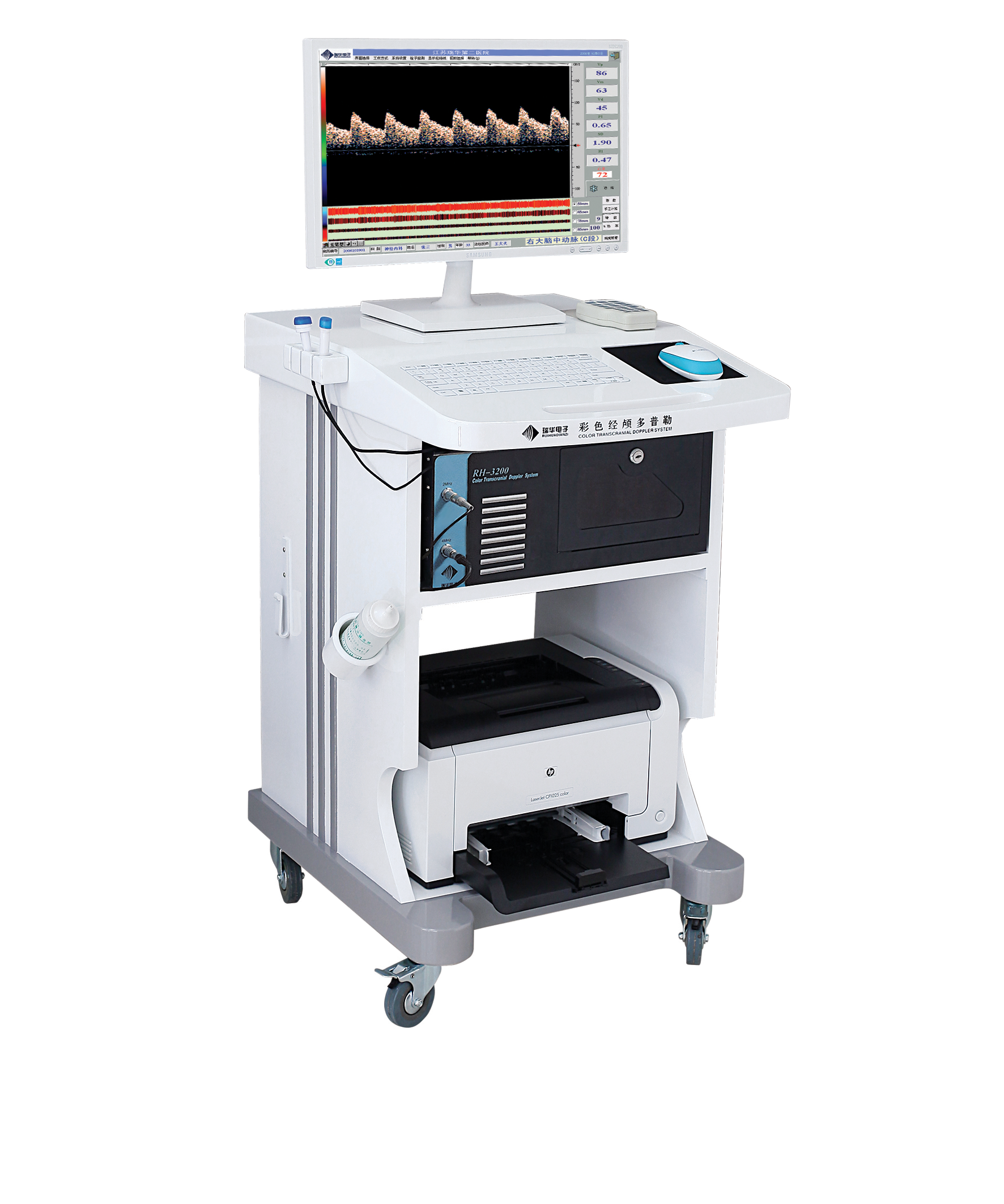

RH-3200 Ultrasonic Transcranial Doppler Blood Flow Analyzer Parameters

lOperating system: WINDOWS 10 .

l PW depth: 5-120mm , accuracy 1mm

lUltrasonic frequency: 2MHz PW 4MHz CW

lSpectrum display : more than one thousand color palettes to choose from

lFull information dynamic playback : >30h , spectrum image and sound synchronous playback

l Image storage : >20,000 spectrum images

lChinese character input : Wubi , Smart ABC, Quanpin , Microsoft Pinyin , and optional writing tablet

lParameter calculation : supports manual, static and dynamic methods to calculate vascular parameter values and can be switched

lSpectrum : 128 points, 256 points, 512 points FFT spectrum display

lDetection and display index: Vp , Vm , Vd , PI , RI , SD , MI , HR , TIC , SBI

lEight -segment full information M energy wave

l Spindle wave technology: Reproduction of original Doppler signals, reliable identification of true and false embolic signals

l Embolic monitoring function: eight-depth embolic monitoring, freely set embolic threshold

l Monitoring trend chart: long-term monitoring information trend chart display

lFunctional mode : intracranial and extracranial vascular detection

lDisplay unit: CM/S, KHz optional

lPower supply voltage: 220 V±10%,50Hz

The software has a one-key recovery function
